Key Features:

• Precision engineered gearing systems
• Minimal power loss and wear
• High torque capacity
• Extended equipment lifespan
• Customizable ratios and configurations

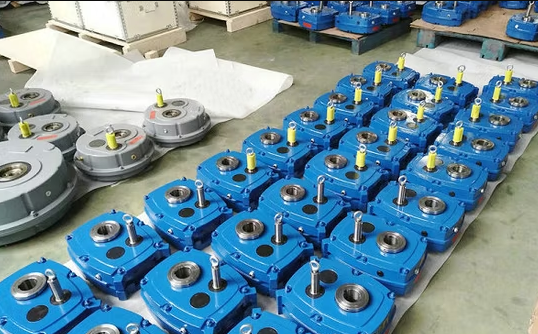

• Mounted directly on the shaft - no foundation required
• Eliminates need for coupling and alignment variations
• Available options: Foot Mount, Flange Mount, Motor Mounting, Vertical Shaft Mounting, Back Stop
• 8 available sizes: B, C, D, E, F, G, H & J
• Maximum Torque (O/P): 6995 NM at 10RPM
• Available in 3 Ratios: 5:1, 13:1, and 20:1
• Choice of alternative hub bores

• Well-designed fins and fans for adequate heat dissipation
• Design based on A class standards
• Modular design for interchangeability with standard gearboxes

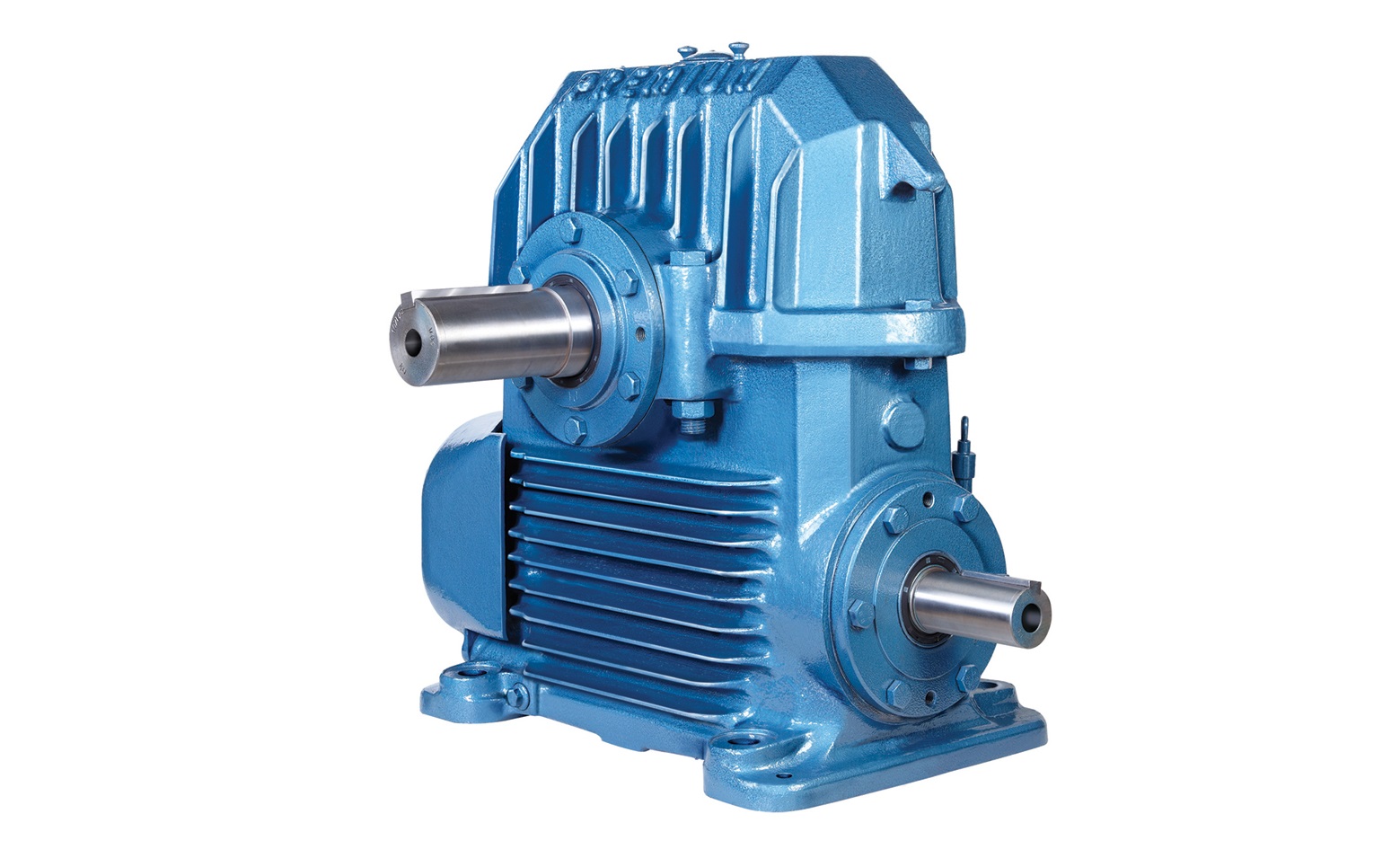

• High-quality case-hardened steel worm shaft with precision ground finish
• High-quality Taper Roller / Angular contact Bearings for thrust and loads
• Ratio range: 5:1 to 70:1
• Types: Horizontal, Vertical, Adaptable

• Power Rating: 12 kW – 15 kW
• Frame sizes: FW 30 / 40/ 50 / 63 /75 / 90, FW 110 / 130 / 150
• Types: Worm, Helical Worm, Double Reduction
• High reduction ratio capability
• Flexible mounting options
• Gearbox with IEC and ISS standards
• Lubricated for lifetime - maintenance-free operation

• Standardized and modular design for international interchangeability
• High efficiency: 90% with higher stability and lower noise
• Power range: 1HP up to 100HP for various applications
• 20CrMo alloy steel with carburizing heat treatment
• Double bearing support on input pinion for high-speed stability
• Vertical and horizontal mounting options
• Modern exterior design with high rigidity

• Standardized and modular design for international brand interchangeability
• Energy efficient: 90% efficiency with higher stability and lower noise
• 3-stage reduction with wide ratio range: 1:8 to 1:215
• Power range: 1HP to 60HP for diverse requirements
• 20CrMo alloy steel with carburizing heat treatment
• 90° transmission with compact space-efficient configuration
• Flexible mounting positions and modern aesthetics

• Standardized and modular design for international interchangeability
• High efficiency: 90% performance with lower noise levels
• Power range: 1HP to 60HP depending on requirements
• Compact configuration for minimized mounting space
• Flexible mounting position options for customers
• Modern exterior design with high structural rigidity

• Standardized modular design for international brand compatibility

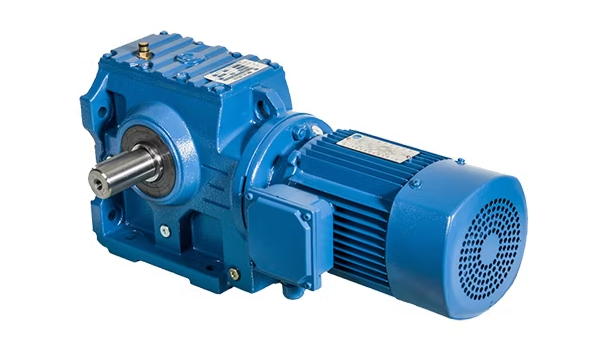

• Outstanding efficiency: as high as 85% with superior stability
• Wide ratio range: 1/8 to 1/210 with 2-stage reduction
• Power range: 1HP to 30HP for diverse applications
• Alloy steel with carburization on pinion, gears and worm shafts
• Aluminum bronze worm wheels for superior strength and endurance
• Self-lock capability under certain loading conditions
• Flexible installation options with modern appearance

• Available in 8 models: B, C, D, E, F, G, H & J
• 12 available ratios ranging from 5:1 to 63:1
• Nominal Input Motor RPM: 1440
• Backstop available in Adaptor Flange
• Hollow output Hub with Standard & alternate bore sizes
• Flange design supports vertical mounting applications
• Torque arm and Anti Vibration Bracket assemblies available
